• Product Description
    Company Info.
    Model:
    TYKG
    Processing customization:
    No
    Specifications:
    25.4-320
    Material:
    stainless steel
    Surface treatment:
    Vibration-light treatment
    Types:
    precision castings
    Nominal diameter:
    10-305 mm
    Fastening diameter:
    25.4-320 mm
    Applicable scope:
    Food, Pharmaceutical, Bioengineering

    ISO2852-1993E Standard International stainless steel quick-fit clamp size standard

    Processing customization: are Model: ISO、3A、DIN
    Size: 1/2″~12″ Type: Precision casting clamps, sanitary clamps, fluid pipe clamps
    Material: Stainless steel 201, 304, 316L Surface treatment: shock polish
    Nominal diameter: 12~305(mm) Tightening diameter: 25~320(mm)
    Scope of application: Suitable for quick installation of fluid pipes in food hygiene industry such as beer, beverage, purified water, biological engineering, chemical and pharmaceutical plants, etc. Brand: MY DREAM

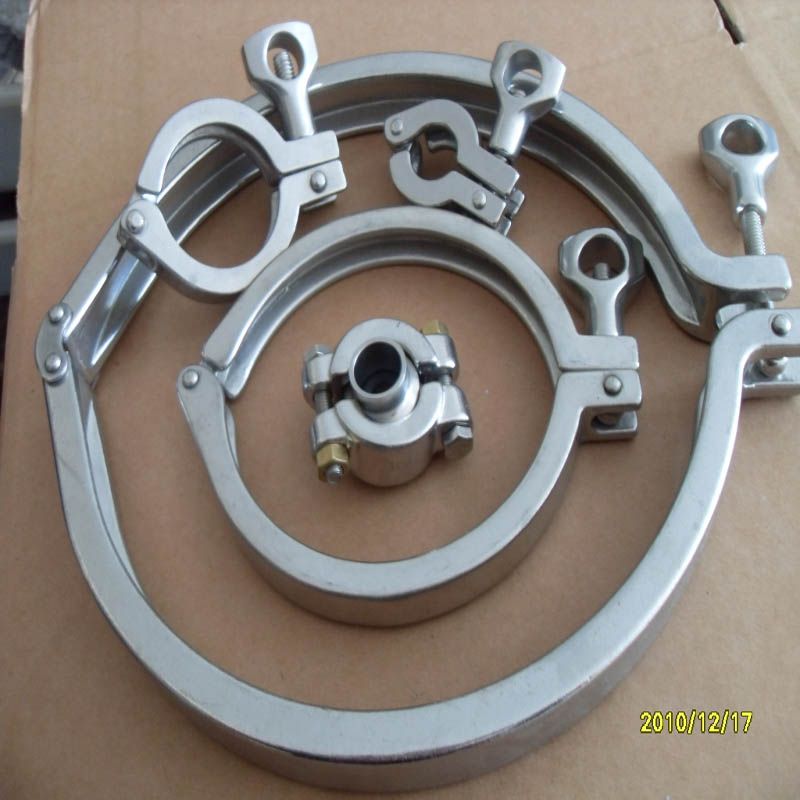

    Hoop hoop: Stainless steel precision casting clamp


    [Product Name]: Stainless steel quick connect joint, welding end, clamp joint, 304 quick connect joint, 316 quick connect joint, joint, single pin clamp, double pin clamp, three-section clamp, etc.

    [Material]:stainless steel 304, stainless steel 316L, SUS304, SUS316L

    [Process]: Stainless steel precision casting clamp is made by silica sol casting process with high precision and close fit with stainless steel joint fittings.
     ISO
    2852-1993E

    [Application field]: Suitable for food industry pipeline, pharmaceutical fluid pipeline, involving beer, beverage, mineral water, biological engineering extraction, drug extraction and other processes in detail.

    [Specification and size]:DN10 ~ DN300. See the following table for details.

    Size inch

    Diameter of connecting steel pipe specification

    Outside diameter of quick assembly chuck

    1/2″

    ¢10

    25.4

    3/4″

    ¢19

    34

    1.5″

    ¢38

    50.5

    2″

    ¢51

    64

    2.5″

    ¢63

    77.5

    3″

    ¢76

    91

    3.5″

    ¢89

    106

    4″

    ¢102

    119

    4″

    ¢108

    119

    4.5″

    ¢114

    130

    5″

    ¢125

    145

    5.5″

    ¢133

    155

    6″

    ¢154

    166.7

    6.5″

    ¢159

    183

    7″

    ¢168

    191

    8″

    ¢202

    217.7

    8.5″

    ¢219

    235

    10″

    ¢254

    268.5

    11″

    ¢279

    305

    12″

    ¢305

    319



    Stainless steel clamp ISO2852-1993E size:
